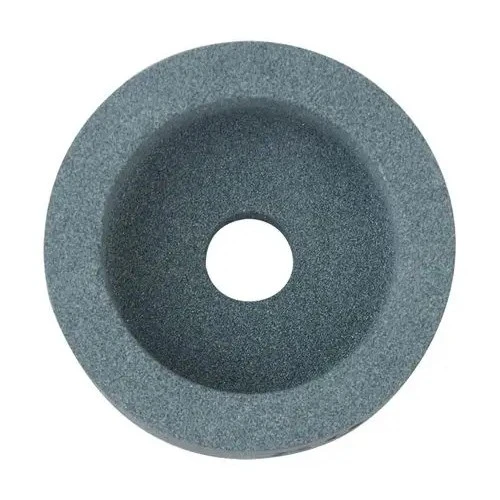

Cylindrical Cup Grinding Wheels – Precision Abrasive Solution
Our Cylindrical Cup Grinding Wheels are engineered for high‑efficiency material removal and precision shaping in metalworking and stone fabrication. The unique cylindrical‑cup profile provides a large contact surface and excellent stability, enabling fast stock removal on flat, contoured, and hard‑to‑reach areas.
Key Features
Advanced Abrasive Composition
Available in brown aluminum oxide, white aluminum oxide, pink aluminum oxide, and silicon carbide for tailored performance.
Optimized for long service life and consistent cutting action.
Robust Bond Systems
Resin‑bond cylindrical cup wheels for versatile grinding with low heat generation.
Vitrified‑bond cup wheels for heavy‑duty applications requiring high strength and temperature resistance.
Cylindrical‑Cup Geometry
Designed for stable, vibration‑free operation at speeds up to 10,000 RPM.
Enhanced access to narrow grooves, slots, and contoured surfaces.
Wide Grit Range
Coarse (24–36) for aggressive stock removal.
Medium (46–60) for general‑purpose finishing.
Fine (80–120) for precision surface smoothing.
Applications
Metalworking & Fabrication
Grinding and shaping steel, stainless steel, cast iron, and aluminum parts.
Deburring weld seams, chamfering edges, and blending surfaces.
Stone & Concrete
Smoothing edges of countertops, flooring tiles, and concrete panels.
Polishing carved details and reliefs.
Tool & Die Maintenance
Resurfacing milling cutter flats, reconditioning reamers, and dressing grinding wheels.
Sharpening slotting cutters and hobbing tools.
How to Choose the Right Cylindrical Cup Wheel?
Abrasive Type
Aluminum Oxide for ferrous metals.
Silicon Carbide for non‑ferrous metals and masonry.
Bond Selection
Resin Bond: Flexible, low‑heat grinding.
Vitrified Bond: Rigid, heat‑resistant for heavy removal.
Grit Size
Coarse (24–36): Rapid material removal.
Medium (46–60): Balanced cutting and finish.
Fine (80–120): Final polish and fine grinding.
Wheel Dimensions
Choose diameter (e.g., 50 mm, 75 mm, 100 mm) and cup depth to match your grinder and workspace.
Speed & Safety
Verify maximum RPM rating matches your machine.
Inspect for uniform structure-no cracks or chips.
Technical Specifications
| Parameter | Specification |
|---|---|
| Abrasive Material | Al₂O₃ (brown/white/pink), SiC |
| Bond Type | Resin, Vitrified |
| Grit Range | 24, 36, 46, 60, 80, 100, 120 |
| Wheel Diameter Options | 50 mm, 75 mm, 100 mm, 125 mm |
| Cup Depth | 10 mm, 15 mm, 20 mm |
| Maximum RPM | 10,000 |
| Arbor Hole Sizes | 6 mm, 8 mm, 10 mm |
FAQ
Q: Can I get free samples of cylindrical cup grinding wheels?
A: Yes, we offer complimentary samples. Lead time: 7–10 days.
Q: What is the production lead time for bulk orders?
A: Standard production takes 30–45 days depending on specifications.
Q: Do you support custom logo engraving?
A: Absolutely-laser engraving, embossing, or transfer printing on request.
Why Choose Our Cylindrical Cup Grinding Wheels?
- Factory‑Direct Pricing on wholesale cylindrical grinding wheels.
- Comprehensive Range of abrasives, bonds, and dimensions in stock.
- ISO‑Certified Quality and balanced construction for safe, high‑speed operation.
- Global Shipping: Fast, reliable delivery to North America, Europe, Asia, and beyond.
Enhance your grinding operations with our precision cylindrical cup grinding wheels-the professional's choice for efficiency, accuracy, and durability. Contact us today for a customized quote!
